Mortiser Series

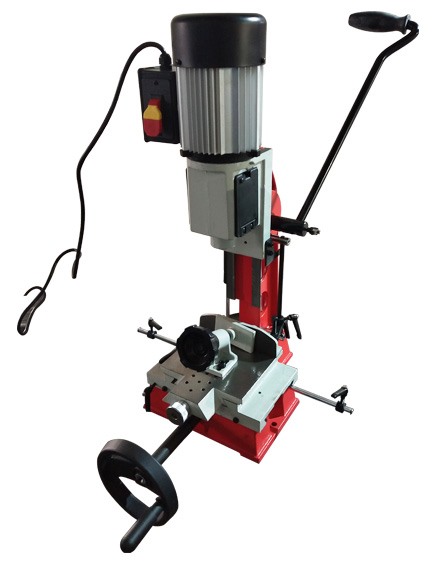

Name：Mortiser Model MS3816R
Details
| Model： | MS3816R |
| Tenoning scope： | 6-16mm(1/4″-5/8″) |
| Maximum mortise depth: | 76mm(3″) |
| Specification of drill chuck: | 1.5-13mm |
| Maximum Clamping Width: | 80mm |
| Front and back stroke: | 40mm |
| Left and right stroke: | 100mm |
| Maximum distance from spindle to baffle: | 50mm |
| Maximum distance from chisel to workbench: | 100mm |
| Table size: | 180×120mm |
| Baffle Size: | 180×50mm |
| Base Size: | 320×270mm |
| Total height: | 800mm |
| Motor: | 230v/50Hz/370W |
| Spindle speed: | 1400rpm |
| Gross/net weight: | 41/39kgs |
| Packing Size: | 670×450×370mm |
| Quantity/20'Container： | 260PCS |
