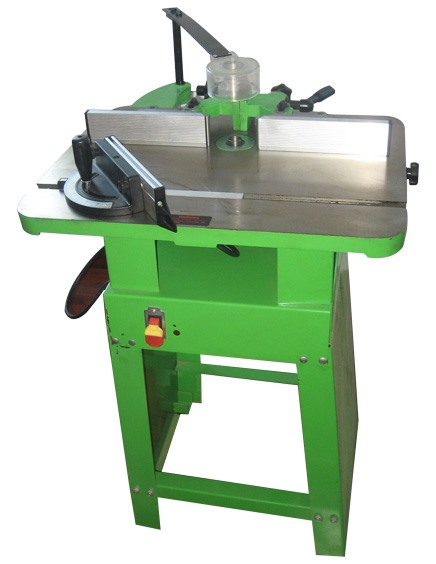

Wood Shaper Machine
Wood Shaper Machine series  model:WS12A

Name:Wood Shaper Machine series model:WS12A

Details

Model

WS34 WS34A WS34B WS34C

Sprindle diameter:

30mm  1/2”,3/4‘’,1‘’,1/4”,1” 30mm 30mm
Vertical strole of main shaft:  75mm 75mm 75mm 75mm

Main table size:

610×534mm 610×534mm 620×350mm 610×534mm

Sliding table size:

______ ______ 320×220mm ______

Suction diameter:

100mm 100mm ______ 100mm

Motor:

Input:1500W

Input:1500W Input:1500W Input:1500W

Sprindle speed:

50HZ(5800/8300)rpm 50HZ(5800/8300)rpm 50HZ(3650/4780/6780/9350)rpm 50HZ(5800/8300)rpm
          60 HZ(7000/10000)rpm 60 HZ(7000/10000)rpm 60 HZ(4380/5730/8130/11220)rpm 60 HZ(7000/10000)rpm

Packing size:

670×600×1100mm 670×600×1100mm 710×470×1160mm 670×600×1100mm

Gross/net weight

160/140kgs 160/140kgs 105/85kgs 160/140kgs

Quantity/20'Container:

64PCS 64PCS 80PCS 64PCS



Model

WS34D WS34J WS12 WS12A

Sprindle diameter:

1/2",3/4",1"分体轴,1/2",3/4"夹筒,无滑台 1/2",3/4",1"分体轴,1/2",3/4"夹筒,    12.7mm (1/2”)                 12.7mm(1/2”),19.05mm(3/4"),夹筒1/4”,1/2”
Vertical strole of main shaft:  75mm 75mm 75mm 75mm

Main table size:

610×534mm 610×534mm  453x395mm 610×480mm

Sliding table size:

______ 320×200mm ______ ______

Suction diameter:

100mm 100mm ______ ______

Motor:

Input:1500W Input:1500W Input: 750W Input:750W

Sprindle speed:

50HZ(5800/8300)rpm 50HZ(5800/8300)rpm 50HZ(7000)rpm 50HZ(7000)rpm
          60 HZ(7000/10000)rpm 60 HZ(7000/10000)rpm  60 HZ(8000)rpm  60 HZ(8000)rpm

Packing size:

670×600×1100mm 670×600×1100mm      640X520X460mm     8820X690X560mm

Gross/net weight

160/140kgs 160/140kgs     73/62kgs       85/70kgs

Quantity/20'Container:

64PCS 64PCS 165PCS 92PCS

Model WS34 WS34A

Sprindle

diameter:

30mm

 1/2”,3/4‘’

,1‘’,1/4”,1”

Vertical strole

of main shaft:

75mm 75mm

Main table

 size:

610×534mm 610×534mm

Sliding table

 size:

______ ______

Suction

diameter:

100mm 100mm
Motor:

Input:

1500W

Input:

1500W

Sprindle

speed:

50HZ

(5800/8300)rpm

50HZ

(5800/8300)rpm

60 HZ

(7000/10000)rpm

60 HZ

(7000/10000)rpm

Packing

size:

670×600

×1100mm

670×600

×1100mm

Gross

/net weight:

160/140kgs 160/140kgs

Quantity

/20'Container:

64PCS 64PCS

Model WS34B WS34C

Sprindle

diameter:

30mm 30mm

Vertical strole

of main shaft:

75mm 75mm

Main table

 size:

620×350mm 610×534mm

Sliding

table size:

320×220mm ______

Suction

diameter:

______ 100mm
Motor:

Input:

1500W

Input:

1500W

Sprindle

speed:

50HZ

(3650/4780

/6780/9350)

rpm

50HZ

(5800

/8300)

rpm

60 HZ

(4380/5730

/8130/11220)

rpm

60 HZ

(7000

/10000)

rpm

Packing

 size:

710×470

×1160mm

670×600

×1100mm

Gross

/net weight:

105/85kgs 160/140kgs

Quantity

/20'Container:

80PCS 64PCS

Model WS34D WS34J

Sprindle

diameter:

1/2",3/4",

1"分体轴,

1/2",3/4"夹筒,

无滑台

1/2",3/4",1"

分体轴,

1/2",3/4"夹筒,

Vertical strole

of main shaft:

75mm 75mm

Main table

 size:

610×534mm 610×534mm

Sliding

table size:

______ 320×200mm

Suction

diameter:

100mm 100mm
Motor:

Input:

1500W

Input:

1500W

Sprindle

 speed:

50HZ

(5800/8300)rpm

50HZ

(5800/8300)rpm

60 HZ

(7000/10000)rpm

60 HZ

(7000/10000)rpm

Packing

size:

670×600

×1100mm

670×600

×1100mm

Gross

/net weight:

160/140kgs 160/140kgs

Quantity

/20'Container:

64PCS 64PCS

Model WS12 WS12A

Sprindle

diameter:

   12.7mm (1/2”)

12.7mm(1/2”),

19.05mm(3/4"),

夹筒1/4”,1/2”

Vertical strole

of main shaft:

75mm 75mm

Main

table size:

 453x395mm 610×480mm

Sliding

table size:

______ ______

Suction

diameter:

______ ______
Motor:

Input:

750W

Input:

750W

Sprindle

speed:

50HZ

(7000)rpm

50HZ

(7000)rpm

 60 HZ

(8000)rpm

 60 HZ

(8000)rpm

Packing size:

640X520

X460mm

 8820X690

X560mm

Gross

/net weight:

73/62kgs  85/70kgs

Quantity

/20'Container:

165PCS 92PCS
